UL1095
产品详情
UL1095 HOOK-UP WIRE 电子连接线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明： .
|
|
Rated temperature:-20℃～80℃
|
额定温度：-20℃～80℃
|
|
Rated voltage：300V
|
额定电压：300V
|
|
Reference standard:UL subject 758
|
标准：UL758、UL1581
|
|
Tinned or bare,stranded or solid
|
导体使用36~16AWG单根或绞合
|
|
Copper conductor 36~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Environmental protectionPVC insulation
|
环保聚氯乙烯（PVC）绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
|
|
|
APPLICATION .
|
应用 .
|
|
For internal wiring of electronic and
|
用于电子、电器设备内部连接线
|
|
Electrical equipment
|
|
|

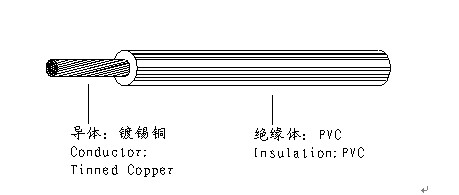

CABLE CONSTRUCTION .
|
电线结构 .
|
.jpg)
|
UL STYLE
＆
CUL TYPE
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard lengths
标准长度
|
Conductor
Resistance at 20℃
导体电阻
|
||
|
线号
|
条数/线径
|
英制
|
公制
|
||||
|
AWG
|
NO./Φmm
|
mm
|
mm
|
FT/coil
|
M/coil
|
Ohm/kft
|
|
|
UL 1095 CUL AWM I A
STRRANDED
绞线
|
30
|
7/0.10
|
0.35
|
1.00±0.05
|
2000
|
610
|
114.4
|
|
28
|
7/0.127
|
0.35
|
1.05±0.05
|
2000
|
610
|
72.00
|
|
|
26
|
7/0.16
|
0.35
|
1.15±0.05
|
2000
|
610
|
45.20
|
|
|
24
|
11/0.16
|
0.35
|
|||||
