UL1275
产品详情
UL1275 HOOK-UP WIRE 电子连接线
UL/CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明： .
|
|
Rated temperature:-20℃～105℃
|
额定温度：-20℃～105℃
|
|
Rated voltage：600V
|
额定电压：6 00V
|
|
Reference standard:UL subject 758、1581
|
标准：UL758、UL1581
|
|
Tinned or bare,stranded or solid
|
导体使用34~3/0AWG单根或绞合
|
|
Copper conductor 34~3/0AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Environmental protectionPVC insulation
|
环保聚氯乙烯（PVC）绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
|
|
|
APPLICATION .
|
应用 .
|
|
Internal wiring of Equipment at temperatures
|
应用于冷冻设备或空调电器连接线，在油中
|
|
Not exceeding 105℃;or to oil not esceeding
|
使用不高于80℃，不超过60℃的潮湿场合.
|
|
80℃ moistnre resitant 60℃
|
|
|
|
|
|

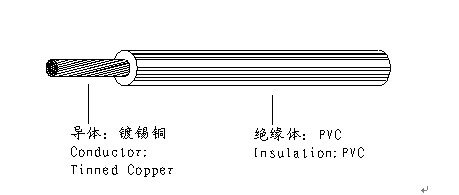

CABLE CONSTRUCTION .
|
电线结构 .
|
.jpg)
|
UL STYLE ＆
CUL TYPE
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard lengths
标准长度
|
Conductor
Resistance at 20℃
导体电阻
|
||
|
线号
|
条数/线径
|
英制
|
公制
|
||||
|
AWG
|
NO./Φmm
|
mm
|
mm
|
FT/coil
|
M/coil
|
Ohm/kft
|
|
|
UL 1275 CUL AWM I A
STRRANDED
绞线
|
18
|
41/0.16
|
1.58
|
4.30±0.10
|
1000
|
305
|
6.64
|
|
16
|
26/0.254
|
1.58
|
4.60±0.10
|
1000
|
305
|
4.18
|
|
|
14
|
41/0.254
|
1.58
|
5.00±0.10
|
1000
|
305
|
2.62
|
|
|
12
|
65/0.254
|
1.58
|
5.50±0.10
|
1000
|
305
|
1.65
|
|
|
10
|
105/0.254
|
1.58
|
6.55±0.10
|
1000
|
305
|
1.04
|
|
