UL2464电脑线
产品详情
UL2464 DOUBLE SHIELDED COMPUTER CABLE 电脑线
UL/CUL File NO.：E328303
|
PRODUCT DESCRIPTION
|
说明：
|
|
FOLL SHIELD TYPE .
|
单屏蔽
|
|
Tinned stranded copper conductor.
|
导体使用镀锡软铜绞线
|
|
Color-coded semi-rigid PVC insulation;
|
半硬质PVC绝缘
|
|
Cores cabled under aluminum mylar shied;
|
芯线集合后铝箔麦拉带隔离
|
|
Tinned stranded copper drain wire ;
|
镀锡软铜地线
|
|
PVC jacketed unpaired computer and data
|
非对型电脑，资料传输电缆，PVC被覆
|
|
Transimissing cable
|
|
|
Rated temperature:80℃
|
额定温度：80℃
|
|
Rated voltage:300 volts
|
额定电压：300V
|
|
Passes VW-1SC vertical flame test
|
可通过VW-1SC垂直燃烧测试
|
|
CL3 approval
|
符合CL3
|
|

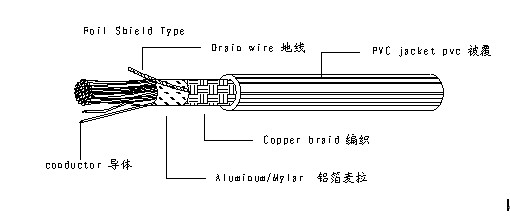

BRAID SHIELD TYPE .
|
双层屏蔽
|
|
Tinned stranded copper conductor ;
|
导体使用镀锡绞合铜
|
|
Color-coded semi-rigid PVC insulation;
|
半硬质PVC绝缘
|
|
Cores cabled under aluminum mylar shied;
|
芯线集合后铝箔麦拉带隔离
|
|
Tinned stranded copper drain wire ;
|
镀锡软铜地线
|
|
Tinned copper braid shield,85% coverage
|
镀锡铜线编织，遮蔽率85%
|
|
PVC jacketed computer and data trensmissing cable ;
|
电脑资料传输电缆，PVC被覆
|
|
Rated temperature：80℃
|
额定温度：80℃
|
|
Rated voltage:300 volts
|
额定电压：300V
|
|
Passes VW-1SC vertical flame test
|
可通过VW-1SC垂直燃烧测试
|
|
CL3 approval
|
符合CL3
|
|
APPLICATIONS
|
应用
|
|
Foil shield type
|
单层屏蔽
|
|
Sound broadcast 、audio instrumentation and
|
影视听器具、仪器、电脑周边连接，EIA
|
|
Computer cables or EIA RS-232 applications
|
国际电工规范
|
|
Braid shield type
|
双层屏蔽
|
|
Computer cables for EIA RS-232 and CAD/CAM
|
国际电工法EIA RS-232及CAD/CAM规定
|
|
Applications
|
使用之电脑线
|
