UL1413
产品详情
UL1431 IRRADIA PVC INSULATED交联PVC线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明：
|
|
Rated temperature:-60℃～105℃
|
额定温度：-60℃～105℃
|
|
Rated voltage：600V
|
额定电压：600V
|
|
Reference standard:UL subject 758
|
标准：UL758
|
|
Tinned or bare,stranded or solid
|
导体使用32~16AWG单根或绞合
|
|
Copper conductor 38~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Colour-coded irradiated PVC insulation
|
无铅交联PVC绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
|
|
|
APPLICATION .
|
应用：
|
|
For internal wiring of high temperature conditions
|
用于电子、电器照明灯具，工业机械，电热
|
|
To household appliance,illuminative lamps,
|
制品等高温场所的绝缘保护
|
|
Industrial machines
|
|
|

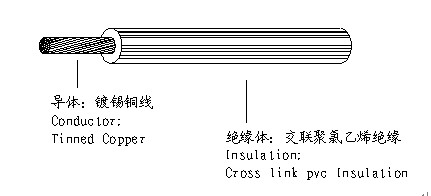

CABLE CONSTRUCTION
|
电线结构 .
|
.jpg)
|
UL STYLE
＆
CSA TYPE
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard lengths
标准长度
|
Conductor
Resistance at 20℃
导体电阻
|
||
|
线号
|
条数/线径
|
英制
|
公制
|
||||
|
AWG
|
NO./Φmm
|
mm
|
mm
|
FT/coil
|
M/coil
|
Ohm/km
|
|
|
UL1431CUL AWM I A STRRANDED
绞线
|
30
|
7/0.10
|
0.79
|
1.90±0.05
|
2000
|
610
|
364.00
|
|
28
|
7/0.127
|
0.79
|
1.95±0.05
|
2000
|
610
|
237.20
|
|
|
26
|
7/0.16
|
0.79
|
2.05±0.05
|
2000
|
610
|
139.75
|
|
|
24
|
11/0.16
|
0.79
|
2.20±0.05
|
2000
|
610
|
88.90
|
|
|
22
|
17/0.16
|
0.79
|
2.35±0.05
|
2000
|
610
|
57.80
|
|
|
20
|
26/0.16
|
0.79
|
2.55±0.05
|
2000
|
610
|
37.60
|
|
|
18
|
41/0.16
|
0.79
|
2.80±0.05
|
2000
|
610
|
23.85
|
|
|
16
|
26/0.254
|
0.79
|
3.10±0.05
|
1000
|
305
|
15.10
|
|
|
14
|
41/0.254
|
0.79
|
3.50±0.05
|
1000
|
305
|
8.45
|
|
|
12
|
65/0.254
|
0.79
|
3.90±0.05
|
1000
|
305
|
5.31
|
|
|
10
|
105/0.254
|
0.79
|
5.00±0.05
|
1000
|
305
|
3.36
|
|
