UL3069
产品详情
UL3069 SILICONE RUBBER WIRE 硅胶线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明：
|
|
Rated temperature:-60℃～150℃
|
额定温度：-60℃～150℃
|
|
Rated voltage：600V
|
额定电压：600V
|
|
Reference standard:UL subject 758
|
标准：UL758
|
|
Tinned or bare,stranded or solid
|
导体使用32~16AWG单根或绞合
|
|
Copper conductor 38~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Silicone Rubber insulation
|
硅胶绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
Pleach: silicone fiberglas
|
编织：玻璃纤维+硅胶树脂
|
|
|
|
|
APPLICATION .
|
应用：
|
|
For internal wiring of high temperature conditions
|
用于电子、电器照明灯具，工业机械，电热
|
|
To household appliance,illuminative lamps,
|
制品等高温场所的绝缘保护
|
|
Industrial machines
|
|
|

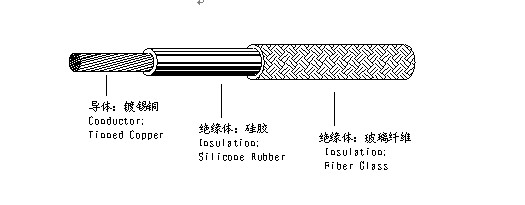

CABLE CONSTRUCTION
|
电线结构 .
|
.jpg)
|
导体Conductor
|
绝缘体Insulation
|
导体电阻
Max.Con
Resistance
(Ω/KM)
|
包装
Unit length
(M)
|
||
|
线规
Size
(AWG)
|
导体结构
Conductor
Construction
No.x(mm)
|
绝缘厚度
Insulator
Thick
(mm)
|
完成外径
Overall
Diameter
(mm)
|
||
|
26
|
7/0.16
|
0.93
|
2.34
|
139.75
|
610
|
|
24
|
7/0.20
|
0.93
|
2.47
|
88.90
|
610
|
|
22
|
7/0.254
|
0.93
|
2.63
|
57.80
|
610
|
|
20
|
7/0.31
|
0.93
|
2.80
|
37.60
|
610
|
