UL3122
产品详情
|
PRODUCT DESCRIPTION
|
说明：
|
|
Rated temperature:-60℃～200℃
|
额定温度：-60℃～200℃
|
|
Rated voltage：300V
|
额定电压：300V
|
|
Reference standard:UL subject 758
|
标准：UL758
|
|
Tinned or bare,stranded or solid
|
导体使用32~16AWG单根或绞合
|
|
Copper conductor 38~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1 ＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
硅胶绝缘
|
|
Silicone Rubber insulation
|
|
|
Uniform insulation thickness to ensure, Easy stripping and cutting Pleach:
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
silicone fiberglas
|
编织：玻璃纤维+硅胶树脂
|
|
APPLICATION
|
|
|
For internal wiring of high temperature conditions
|
应用：
|
|
To household appliance,illuminative lamps,
|
用于电子、电器照明灯具，工业机械，电热
|
|
Industrial machines
|
制品等高温场所的绝缘保护
|
|

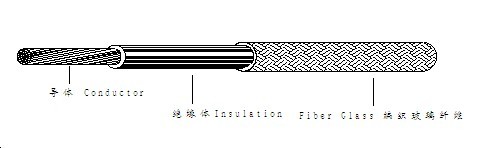

CABLE CONSTRUCTION
|
电线结构
|
|
UL STYLE
＆
CSA TYPE
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard lengths
标准长度
|
Conductor
Resistance at 20℃
导体电阻
|
||
|
线号
|
条数/线径
|
英制
|
公制
|
||||
|
AWG
|
NO./Φmm
|
mm
|
mm
|
FT/coil
|
M/coil
|
Ohm/km
|
|
|
UL3122 CUL AWM I A STRRANDED
绞线
|
26
|
7/0.16
|
0.6
|
1.70±0.05
|
2000
|
610
|
139.75
|
|
24
|
7/0.20
|
0.6
|
1.80±0.05
|
2000
|
610
|
88.90
|
|
|
22
|
7/0.254
|
0.6
|
2.00±0.05
|
2000
|
610
|
57.80
|
|
|
20
|
7/0.31
|
0.6
|
2.15±0.05
|
2000
|
610
|
37.60
|
|
|
18
|
7/0.39
|
0.6
|
2.40±0.05
|
2000
|
610
|
23.85
|
|
|
16
|
7/0.49
|
0.6
|
2.70±0.05
|
2000
|
610
|
15.10
|
|
|
UL3122 CUL AWM I A (solid)
单支
|
24
|
1/0.50
|
0.65
|
1.80±0.05
|
2000
|
610
|
84.2
|
|
22
|
1/0.65
|
0.65
|
1.95±0.05
|
2000
|
610
|
53.2
|
|
|
20
|
1/0.81
|
0.65
|
2.11±0.05
|
2000
|
610
|
33.2
|
|
|
18
|
1/1.02
|
0.65
|
2.32±0.05
|
2000
|
610
|
21.00
|
|
|
16
|
1/1.30
|
0.65
|
2.60±0.05
|
2000
|
610
|
15.30
|
|
|
UL3122 CUL AWM I A STRRANDED
绞线
|
24
|
11/0.16
|
0.6
|
1.81±0.05
|
2000
|
610
|
88.90
|
|
22
|
17/0.16
|
0.6
|
1.96±0.05
|
2000
|
610
|
57.80
|
|
|
20
|
26/0.16
|
0.6
|
2.14±0.05
|
2000
|
610
|
37.60
|
|
|
18
|
41/0.16
|
0.6
|
2.38±0.05
|
2000
|
610
|
23.85
|
|
|
16
|
26/0.254
|
0.6
|
2.69±0.05
|
2000
|
610
|
15.10
|
|
