UL3132
产品详情
UL3132 SILICONE RUBBER WIRE 硅胶线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明：
|
|
Rated temperature:-60℃～150℃
|
额定温度：-60℃～150℃
|
|
Rated voltage：300V
|
额定电压：300V
|
|
Reference standard:UL subject 758
|
标准：UL758
|
|
Tinned or bare,stranded or solid
|
导体使用32~16AWG单根或绞合
|
|
Copper conductor 38~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Silicone Rubber insulation
|
硅胶绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
APPLICATION .
|
应用：
|
|
For internal wiring of high temperature conditions
|
用于电子、电器照明灯具，工业机械，电热
|
|
To household appliance,illuminative lamps,
|
制品等高温场所的绝缘保护
|
|
Industrial machines
|
|
|

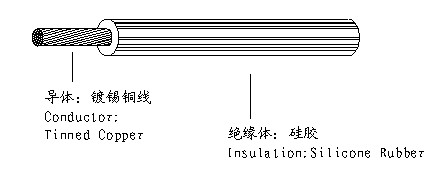

CABLE CONSTRUCTION
|
电线结构 .
|
.jpg)
|
UL STYLE
＆
CSA TYPE
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard lengths
标准长度
|
Conductor
Resistance at 20℃
导体电阻
|
||
|
线号
|
条数/线径
|
英制
|
公制
|
||||
|
AWG
|
NO./Φmm
|
mm
|
mm
|
FT/coil
|
M/coil
|
Ohm/km
|
|
|
UL3132 CUL AWM I A STRRANDED
绞线
|
30
|
7/0.10
|
0.45
|
1.20±0.05
|
2000
|
610
|
361
|
|
28
|
7/0.12
|
0.45
|
1.28±0.05
|
2000
|
610
|
227
|
|
|
26
|
7/0.16
|
0.45
|
1.38±0.05
|
2000
|
610
|
139.75
|
|
|
24
|
7/0.20
|
0.45
|
1.50±0.05
|
2000
|
610
|
88.90
|
|
|
22
|
7/0.254
|
0.45
|
1.66±0.05
|
2000
|
610
|
57.80
|
|
|
20
|
7/0.31
|
0.45
|
1.80±0.05
|
2000
|
610
|
37.60
|
|
|
18
|
7/0.39
|
0.45
|
2.08±0.05
|
2000
|
610
|
23.85
|
|
|
16
|
7/0.49
|
0.45
|
2.37±0.05
|
2000
|
610
|
15.10
|
|
