UL3239
产品详情
UL3239 SILICONE RUBBER WIRE 硅胶线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明：
|
|
Rated temperature:-60℃～200℃
|
额定温度：-60℃～200℃
|
|
Rated voltage：3KV ,6KV ,10KV,20KV,30KV
|
额定电压：3KV,6KV,10KV,20KV,30KV
|
|
Reference standard:UL subject 758
|
标准：UL758
|
|
Tinned or bare,stranded or solid
|
导体使用32~16AWG单根或绞合
|
|
Copper conductor 38~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Silicone Rubber insulation
|
硅胶绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
APPLICATION .
|
应用：
|
|
For internal wiring of home electric appliances,
|
适用于各种家用电器、微波炉、霓虹灯、传
|
|
Neon lights fax machines,scanners duplicating
|
真机、复印机、扫描仪等机器内配连接线。
|
|
Machines ere.
|
|
|

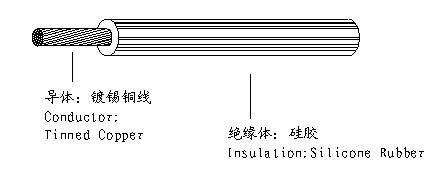

CABLE CONSTRUCTION
|
电线结构 .
|
.jpg)
|
线规
Size
(AWG)
|
导体
Cond
uctor
|
绝缘体Insulation
|
导体电阻
Max.Con
Resistance
(Ω/KM)
|
包装
Unit length
(M)
|
|||||||||
|
3000V
|
6000V
|
10000V
|
20000V
|
30000V
|
|||||||||
|
绝缘厚度
Nominal
Thickness
(mm)
|
完成外径
Diameter
(mm)
|
绝缘厚度
Nominal
Thickness
(mm)
|
完成外径
Diameter
(mm)
|
绝缘厚度
Nominal
Thickness
(mm)
|
完成外径
Diameter
(mm)
|
绝缘厚度
Nominal
Thickness
(mm)
|
完成外径
Diameter
(mm)
|
绝缘厚度
Nominal
Thickness
(mm)
|
完成外径
Diameter
(mm)
|
||||
|
28
|
7/0.12
|
0.5
|
1.37
|
0.70
|
1.77
|
1.00
|
2.37
|
1.30
|
2.97
|
1.70
|
3.77
|
237.25
|
305
|
|
26
|
7/0.15
|
0.5
|
1.49
|
0.70
|
1.89
|
1.00
|
2.49
|
1.30
|
3.09
|
1.70
|
3.89
|
148.94
|
305
|
|
24
|
14/0.14
|
0.5
|
1.60
|
0.70
|
2.00
|
1.00
|
2.60
|
1.30
|
3.20
|
1.70
|
4.00
|
93.25
|
305
|
|
22
|
22/0.14
|
0.5
|
1.76
|
0.70
|
2.14
|
1.00
|
2.76
|
1.30
|
3.36
|
1.70
|
4.16
|
55.00
|
305
|
|
20
|
32/0.14
|
0.5
|
1.91
|
0.70
|
2.31
|
1.00
|
2.91
|
1.30
|
3.51
|
1.70
|
4.31
|
34.60
|
305
|
|
18
|
52/0.14
|
0.5
|
2.17
|
0.70
|
2.57
|
1.00
|
3.17
|
1.30
|
3.77
|
1.70
|
4.57
|
21.8
|
305
|
|
16
|
52/0.18
|
0.5
|
2.50
|
0.70
|
2.90
|
1.00
|
3.50
|
1.30
|
4.10
|
1.70
|
4.90
|
13.70
|
305
|
