UL3321
产品详情
UL3321 IRRADIA XLPE WIRE交联PE线
UL /CUL File NO.：E328303
|
PRODUCT DESCRIPTION .
|
说明：
|
|
Rated temperature:-60℃～150℃
|
额定温度：-60℃～150℃
|
|
Rated voltage：600V
|
额定电压：600V
|
|
Reference standard:UL subject 758
|
标准：UL758
|
|
Tinned or bare,stranded or solid
|
导体使用32~16AWG单根或绞合
|
|
Copper conductor 38~16AWG
|
裸铜或镀锡铜
|
|
Passes UL VW-1＆ CUL FT1
|
通过UL VW-1及CUL FT1 垂直燃烧试验
|
|
Vertical flame test
|
|
|
Coulour-coded irradiated PEinsulation
|
无铅交联聚乙烯绝缘
|
|
Uniform insulation thickness to ensure
|
绝缘厚度均匀，方便剥皮及剪裁
|
|
Easy stripping and cutting
|
|
|
APPLICATION .
|
应用：
|
|
For internal wiring of high temperature conditions
|
用于电子、电器照明灯具，工业机械，电热
|
|
To household appliance,illuminative lamps,
|
制品等高温场所的绝缘保护
|
|
Industrial machines
|
|
|

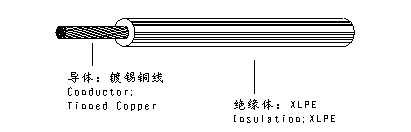

CABLE CONSTRUCTION
|
电线结构
|
.jpg)
|
UL STYLE
＆
CSA TYPE
|
Conductor
导体
|
Insulation
Thickness
绝缘厚度
|
Overall
Diameter
完成外径
|
Standard lengths
标准长度
|
Conductor
Resistance at 20℃
导体电阻
|
||
|
线号
|
条数/线径
|
英制
|
公制
|
||||
|
AWG
|
NO./Φmm
|
mm
|
mm
|
FT/coil
|
M/coil
|
Ohm/km
|
|
|
UL3321 CUL AWM I A STRRANDED
绞线
|
30
|
7/0.10
|
0.78
|
1.86±0.05
|
2000
|
610
|
347
|
|
28
|
7/0.127
|
0.78
|
1.94±0.05
|
2000
|
610
|
218
|
|
|
26
|
7/0.16
|
0.78
|
2.04±0.05
|
2000
|
610
|
139.75
|
|
|
24
|
11/0.16
|
0.78
|
2.17±0.05
|
2000
|
610
|
88.90
|
|
|
22
|
17/0.16
|
0.78
|
2.33±0.05
|
2000
|
610
|
57.80
|
|
|
20
|
26/0.16
|
0.78
|
2.50±0.05
|
2000
|
610
|
37.60
|
|
|
18
|
16/0.254
|
0.78
|
2.75±0.05
|
2000
|
610
|
23.85
|
|
|
16
|
26/0.254
|
0.78
|
3.05±0.05
|
1000
|
305
|
15.10
|
|
|
14
|
41/0.254
|
0.78
|
3.45±0.05
|
1000
|
305
|
8.78
|
|
|
12
|
65/0.254
|
0.78
|
3.93±0.05
|
1000
|
305
|
5.70
|
|
|
10
|
105/0.254
|
0.78
|
5.0±0.05
|
1000
|
305
|
3.95
|
|
|
8
|
133/0.28
|
1.15
|
6.05±0.05
|
1000
|
305
|
2.50
|
|
|
6
|
84/0.45
|
1.15
|
7.09±0.05
|
328
|
100
|
1.42
|
|
|
4
|
133/0.45
|
1.15
|
8.32±0.05
|
328
|
100
|
0.90
|
|
|
2
|
212/0.45
|
1.53
|
10.66±0.05
|
328
|
100
|
0.60
|
|
