08(RV-90)/07(BV-90)
产品详情
FLEXIBLE CABLE CCC国标电子线系列
|
Specification
|
说明:
|
|
Rated temperature:-20℃～70℃
|
额定温度：-20℃～90℃
|
|
Annealing copper wire entang with
|
退火铜丝绞合导体无铅
|
|
Conductor
|
|
|
PVC insulating coating
|
PVC绝缘及护套
|
|
APPLICATIONS
|
应用
|
|
For general purpose internal wiring of electrical
|
适用于一般电子、电器设备内部连接
|
|
And electronic equipment
|
|
|

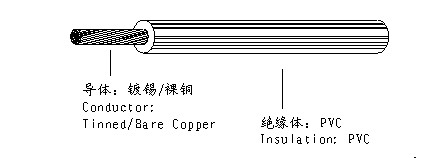

CABLE CONSTRUCTION
|
电线结构：
|
.jpg)
60227 IEC 08（RV-90）300V/500V：
|
Conductor导体
|
Nominal
Thickness
绝缘厚度
mm
|
Overall
Diameter
完成外径
mm
|
Maxlmum Conductor Resistance Ω/kft20℃
|
||
|
Section
标称面积
mm
|
Conductor
construction
导体结构
NO./mm
|
Tinned
镀锡铜
|
Bare
裸铜
|
||
|
0.5
|
16/0.2
|
0.6
|
2.2
|
40.1
|
30.9
|
|
0.75
|
24/0.2
|
0.6
|
2.4
|
26.7
|
26.0
|
|
1.0
|
32/0.2
|
0.6
|
2.6
|
20.0
|
19.5
|
|
1.5
|
30/0.25
|
0.7
|
3.1
|
13.7
|
13.3
|
|
2.5
|
49/0.25
|
0.8
|
3.7
|
8.21
|
7.98
|
CCC File NO.：
60227 IEC 07（BV-90）300V/500V：
|
Conductor导体
|
Nominal
Thickness
绝缘厚度
mm
|
Overall
Diameter
完成外径
mm
|
Maxlmum Conductor Resistance Ω/kft20℃
|
||
|
Section
标称面积
mm
|
Conductor
construction
导体结构
NO./mm
|
Tinned
镀锡铜
|
Bare
裸铜
|
||
|
0.5
|
1/0.80
|
0.6
|
2.1
|
36.7
|
36.0
|
|
0.75
|
1/0.97
|
0.6
|
2.3
|
24.8
|
24.5
|
|
1.0
|
1/1.13
|
0.6
|
2.4
|
18.2
|
18.1
|
|
1.5
|
1/1.38
|
0.7
|
2.9
|
12.2
|
12.1
|
|
2.5
|
1/1.78
|
0.8
|
3.5
|
7.56
|
7.41
|
