AV、AV-90/AVR、AVR-90
产品详情
FLEXIBLE CABLE CCC国标电子线系列
|
Specification
|
说明:
|
|
Rated temperature:-20℃～70℃
|
额定温度：-15℃～70℃
|
|
Annealing copper wire entang with
|
退火铜丝绞合导体无铅
|
|
Conductor
|
|
|
PVC insulating coating
|
PVC绝缘及护套
|
|
APPLICATIONS
|
应用
|
|
For general purpose internal wiring of electrical
|
适用于一般电子、电器设备内部连接
|
|
And electronic equipment
|
|
|

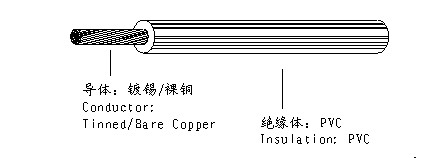

CABLE CONSTRUCTION
|
电线结构：
|
.jpg)
AV、AV-90 300V/300V铜芯聚氯乙烯绝缘安装用电线：
|
Conductor导体
|
Nominal
Thickness
绝缘厚度
mm
|
Overall
Diameter
完成外径
mm
|
Maxlmum Conductor Resistance Ω/kft20℃
|
70℃或90℃时绝缘电阻最小值MΩ.KM
|
||
|
Section
标称面积
mm
|
Conductor
construction
导体结构
NO./mm
|
Tinned
镀锡铜
|
Bare裸铜
|
|||
|
0.08
|
7/0.12
|
0.4
|
1.2
|
229.6
|
225.2
|
0.018
|
|
0.12
|
7/0.15
|
0.4
|
1.4
|
146.9
|
144.1
|
0.016
|
|
0.2
|
12/0.15
|
0.4
|
1.5
|
94.0
|
92.3
|
0.015
|
|
0.3
|
16/0.15
|
0.4
|
1.6
|
65.3
|
64.1
|
0.014
|
|
0.4
|
23/0.15
|
0.4
|
1.8
|
48.0
|
47.1
|
0.012
|
AVR、AVR-90 300/300铜芯聚氯乙烯绝缘安装用电线：
|
Conductor导体
|
Nominal
Thickness
绝缘厚度
mm
|
Overall
Diameter
完成外径
mm
|
Maxlmum Conductor Resistance Ω/kft20℃
|
70℃或90℃时绝缘电阻最小值MΩ.KM
|
||
|
Section
标称面积
mm
|
Conductor
construction
导体结构
NO./mm
|
Tinned
镀锡铜
|
Bare裸铜
|
|||
|
0.08
|
7/0.12
|
0.4
|
1.2
|
229.6
|
225.2
|
0.018
|
|
0.12
|
7/0.15
|
0.4
|
1.4
|
146.9
|
144.1
|
0.016
|
|
0.2
|
12/0.15
|
0.4
|
1.5
|
94.0
|
92.3
|
0.015
|
|
0.3
|
16/0.15
|
0.5
|
1.8
|
65.3
|
64.1
|
0.014
|
|
0.4
|
23/0.15
|
0.5
|
2.0
|
48.0
|
47.1
|
0.012
|
