53(RVV)
产品详情
FLEXIBLE CABLE CCC国标电源线系列
CCC File NO.:
60227 IEC 53(RVV)
|
Specification
|
说明:
|
|
Rated temperature:-20℃～70℃
|
额定温度：-20℃～70℃
|
|
Rated voltage： 300/500V
|
额定电压：300/500V
|
|
Annealing copper wire entang with
|
退火铜丝绞合导体无铅
|
|
Conductor
|
|
|
PVC insulating coating
|
PVC绝缘及护套
|
|
|
|
|
APPLICATIONS
|
应用
|
|
For insulation protection of high temperature
|
适用于小功率家用电器、电
|
|
Conditions to household appliance,illuminative
|
动工具以及动力照明等。
|
|
Lamps,industrial machines
|
|
|

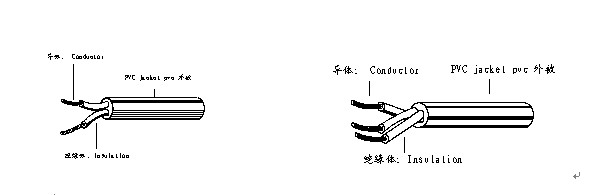

CABLE CONSTRUCTION
|
电线结构：
|
|
NO.of Cores
芯线数
|
Conductor导体
|
Nominal
Thickness
绝缘厚度
mm
|
Jacket
Thickness
被覆厚度
mm
|
Overall
Diameter
完成外径
mm
|
Maxlmum Conductor Resistance Ω/kft20℃
|
||
|
Section
标称面积
mm
|
Conductor
construction
导体结构
NO./mm
|
Tinned
镀锡铜
|
Bare
裸铜
|
||||
|
2
|
0.75
|
24/0.2
|
0.6
|
0.8
|
6.5
|
26.70
|
26.00
|
|
0.75
|
24/0.2
|
0.6
|
0.8
|
4.1×6.5
|
26.70
|
26.00
|
|
|
1.0
|
32/0.2
|
0.6
|
0.8
|
6.8
|
20.00
|
19.50
|
|
|
1.5
|
48/0.2
|
0.6
|
0.8
|
7.9
|
13.70
|
13.30
|
|
|
3
|
0.75
|
24/0.2
|
0.6
|
0.8
|
6.8
|
26.70
|
26.00
|
|
1.0
|
32/0.2
|
0.6
|
0.8
|
7.3
|
20.00
|
19.50
|
|
|
1.5
|
48/0.2
|
0.6
|
0.8
|
8.5
|
13.70
|
13.30
|
|
